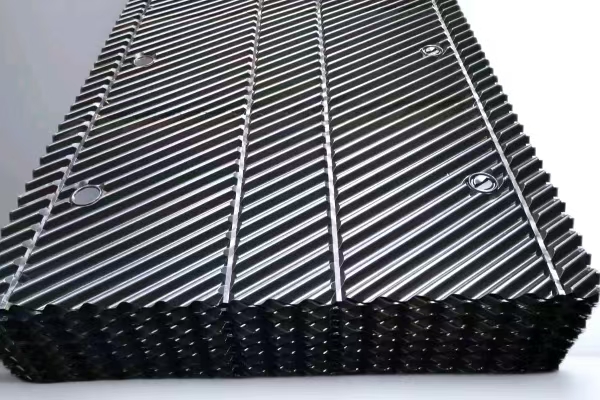

1830mm Width Cooling Tower Fill

The 1830mm Width Cooling Tower Fill is a wide-format fill solution developed for cooling tower projects requiring a larger installation width. Its 1830 mm width, 20 mm pitch, and 90° angle provide a defined configuration, while the customizable thickness allows the specification to be adjusted to different project requirements.

Technical Specifications

• Width: 1830 mm
• Length: 1220 mm
• Thickness: Customizable
• Pitch: 20 mm
• Angle: 90°
• Material: PVC, CPVC, PP

Designed for Large-Width Fill Sections

The 1830 mm width makes this cooling tower fill suitable for installations where a wider fill section is required. When specifying the product, the available tower space and existing support arrangement should be checked to ensure the fill can be installed correctly.

Material Selection for Different Conditions

The fill can be manufactured from PVC, CPVC, or PP. Material selection should be based on the cooling tower's operating conditions, circulating water characteristics, and the expected service environment.

Customizable Thickness

While the standard length is 1220 mm, the thickness can be customized according to project requirements. This provides additional flexibility when replacing existing fill or developing a fill specification for a new cooling tower installation.

What Should Be Confirmed Before Ordering?

For an accurate product configuration, customers should provide the required fill width and length, existing fill thickness, tower type, installation dimensions, and operating conditions. These details help determine whether the 1830 mm configuration and selected material are suitable for the application.

With its wide configuration, customizable thickness, and multiple material options, this cooling tower fill can be specified for different engineering and replacement requirements.
