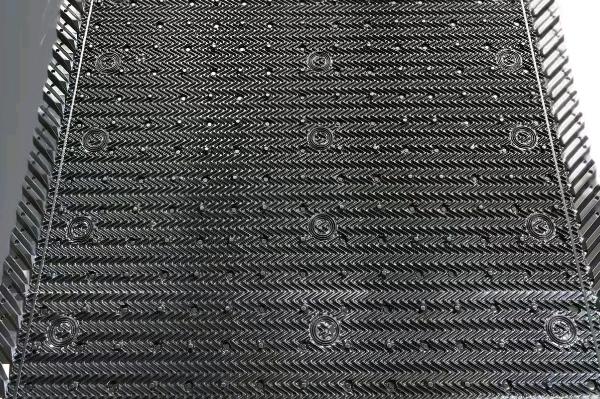

This Honeycomb Cooling Tower Fill is designed for cooling tower projects requiring flexible fill dimensions and multiple configuration options. With widths from 620mm to 1600mm, customized length and thickness, and several pitch and material choices, it can be configured for different cooling tower layouts.
The available widths include 620mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm, 1050mm, 1100mm, 1150mm, 1200mm, 1250mm, 1300mm, 1350mm, 1400mm, 1450mm, 1500mm, and 1600mm.
This extensive width selection makes the fill suitable for projects using different module arrangements rather than relying on one fixed size.
The fill is available with 15mm, 16mm, and 18mm pitch. Length and thickness can be customized according to the required product configuration.
For projects requiring different plastic options, the product can be manufactured in PVC, CPVC, or PP, providing flexibility for different cooling tower applications.
Two connection methods are available: glue or hang. This allows the fill configuration to be matched with different assembly requirements and tower structures.
| Specification | Options |
|---|---|
| Connection Method | Glue or Hang |
| Width | 620–1600mm |
| Length | Customized |
| Thickness | Customized |
| Pitch | 15mm, 16mm, 18mm |
| Material | PVC, CPVC, PP |
With multiple widths, customizable dimensions, three pitch options, and PVC, CPVC, and PP materials, this Honeycomb Cooling Tower Fill provides a practical product choice for different tower configurations and project specifications.
